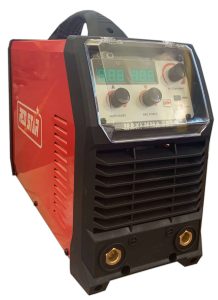

MAXI MMA 253 Welding Machine
MAXI MMA 253
The RED STAR MAXI MMA 253 is a compact, high-performance welding machine with Lift TIG, adjustable Hot Start & Arc Force, digital display, generator compatibility, and robust industrial durability.
- SKU: -
- Categories: Welding Equipment
- Models: MAXI MMA 253
- Brand - Origin : RED STAR, Portugal
Description
The RED STAR MAXI MMA 253 is a versatile, high-performance welding machine designed for professional industrial applications. Equipped with advanced Lift TIG functionality, adjustable Hot Start, and Arc Force, it ensures precise and efficient welding across a variety of electrode types. Its digital display allows easy monitoring of amperage and voltage, while integrated temperature, current, and voltage sensors provide maximum protection and reliability. Compatible with diesel generators, the MAXI MMA 253 delivers stable performance even under fluctuating power conditions. Compact, durable, and user-friendly, it is ideal for both MMA and TIG welding applications in demanding environments.
Features:
- Lift TIG Function: Enables TIG welding for thin metals and precise joints.
- Adjustable Hot Start & Arc Force: Ensures smooth arc initiation and stable welding performance.
- Digital Display: Shows real-time amperage and voltage for accurate control.
- Advanced Protection: Equipped with temperature, current, and voltage sensors for high safety.
- Generator-Compatible: Operates seamlessly with diesel generators, avoiding voltage peak failures.
- Wide Electrode Compatibility: Works with 6013 and 7018 electrodes (1.6–5.0 mm).
- Duty Cycle & Performance: 60% @ 250A, 100% @ 200A for consistent output.
- Compact & Lightweight: Dimensions 290 × 135 × 220 mm; weight 10 kg for portability.
- Robust Construction: IP23 protection and H-class insulation for industrial durability.
Technical Specifications:
| Model | MAXI MMA 253 |
| Supply Voltage | 3 Phase, 400V ±10%, 50/60 Hz |
| Effective Current (A) | MMA/LIFT 8.5 / 6.3 |
| Energy (kW) | MMA/LIFT 20 / 16 |
| Current (A) | MMA/LIFT 1.6 / 12 |
| Duty Cycle (40°C, 10 min) | 60% @ 250A, 100% @ 200A |
| No-Load Voltage (V) | 64 |
| Welding Current Range (A) | 10 – 250 |
| Protection Class | IP23 |
| Insulation Class | H |
| Cooling System | AF (Air Forced) |
| Dimensions (L × W × H) | 290 × 135 × 220 mm |
| Weight (kg) | 10 |
| Electrode Type | 6013, 7018 |
| Electrode Diameter (mm) | 1.6 – 5.0 |
